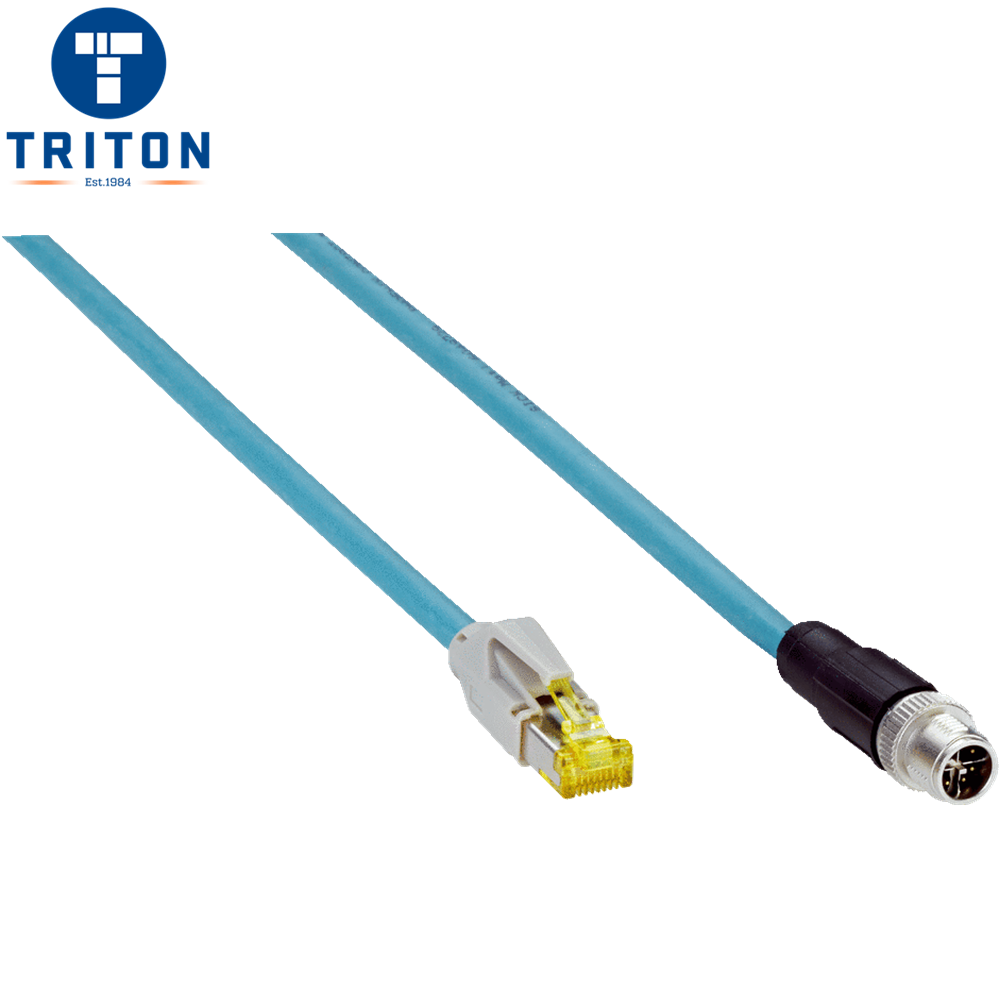

SICK YM2X18-050EG1MRJA8 – 5m 8-Way Network Cable for Lector® 63X Series

Part Number: 2106259

Designed specifically for high-speed data communication in demanding industrial environments, the SICK YM2X18-050EG1MRJA8 5m network cable offers exceptional durability, flexibility, and signal integrity. Engineered for compatibility with the Lector® 63X series image-based code readers, this robust CAT6A Ethernet cable delivers reliable gigabit data transmission, even in harsh environments where oil, lubricants, and mechanical stress are present.

⚙️ Key Features & Benefits:

• Optimized for High-Speed Communication
  Supports data rates of up to 10 Gbit/s with CAT6A transmission characteristics, making it ideal for real-time, high-throughput applications like barcode scanning and machine vision.

• Robust, Industrial-Grade Design
  Built to withstand mechanical stress with PUR halogen-free jacket, nickel-plated zinc die-cast locking nuts, and IP65/IP67 protection at the M12 connector end—ideal for use in zones with oil and lubricant exposure.

• Versatile Dual-Ended Connectivity
  • Head A: M12, 8-pin, straight, X-coded (screw-on locking)
  • Head B: RJ45, 8-pin, straight (snap-in locking)
    This combination offers secure, seamless integration between industrial devices and Ethernet networks.
• Reliable Electrical Performance
  • Nominal voltage: 125 V AC
  • Reference voltage: 48 V AC / 60 V DC
  • Rated impulse voltage: 1 kV
  • Insulation resistance: >100 MΩ
  • Current load: 0.5 A
• Flexible Yet Durable
  • Bending radius for flexible use: >10× cable diameter
  • Cable diameter: 6.4 mm
  • Conductor cross-section: 0.14 mm²
  • Excellent thermal resistance and flame retardant per UL 1581 / IEC 60332-1-2
• Wide Operating Temperature Range
  • Stationary: –40 °C to +80 °C
  • Connector head: –25 °C to +85 °C
• Certifications & Safety Compliance
  • CE and UL certified
  • UL File No.: E513908
  • Overvoltage category: III
  • Contamination rating: 3

Whether you’re working in factory automation, logistics, or harsh manufacturing environments, the YM2X18-050EG1MRJA8 delivers reliable, high-speed performance with superior protection and long-term durability. Tailored for the SICK Lector® 63X series and compatible with a wide range of Ethernet-enabled devices, this cable ensures minimal downtime and maximum efficiency in mission-critical applications.
