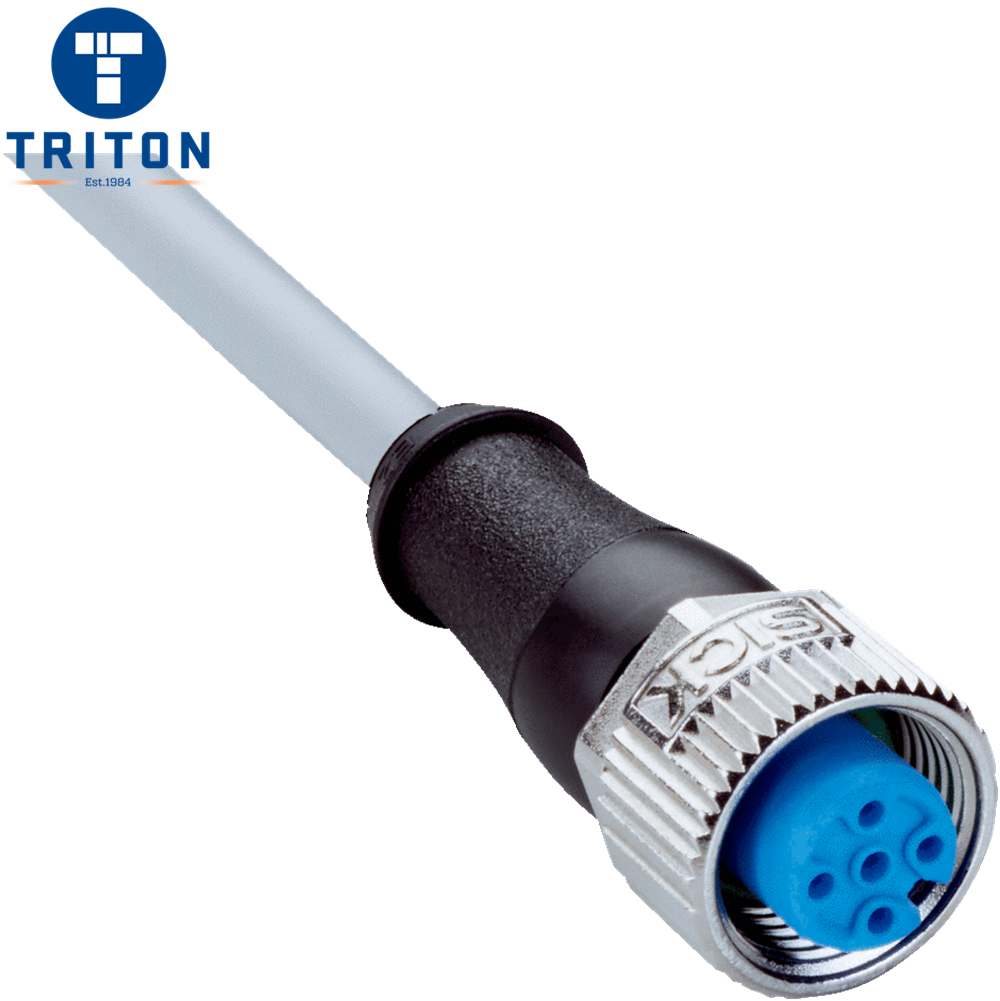

SICK Sensor Cable – 10 Metre, 4-Way M12 (A-Coded) with Flying Leads

Reliable Signal Transmission for Industrial Automation Applications

Ensure dependable sensor connectivity in demanding industrial environments with the SICK 10m 4-Way Sensor Cable, engineered for precision, flexibility, and durability. Designed for use in sensor-actuator systems, this unshielded cable is ideal for applications in clean and chemically exposed zones.

🔧 Key Features & Benefits:

• Robust Connector Design
  • Head A: M12 Female Connector, 5-pin, straight, A-coded for standard sensor integration
  • Head B: Flying Leads for versatile terminations or control cabinet wiring
  • Screw-locking plug ensures secure and vibration-resistant connection
• Industrial-Grade Materials
  • Connector made from durable TPU, with zinc die-cast, nickel-plated locking nut and FKM seal
  • Jacket made from tough, flame-retardant PVC, ideal for general automation environments
  • Outer cable diameter: 5.2 mm for compact routing
• Reliable Electrical Performance
  • Voltage ratings:
    • Cable: 300 V AC
    • Reference: 125 V AC / 125 V DC
  • Current Load Capacity: 4 A
  • Test Voltage: 2,000 V AC
  • Rated Impulse Voltage: 1.5 kV
  • Insulation Resistance: ≥ 100 MΩ
• Built for Tough Conditions
  • Suitable for use in chemical zones and clean environments
  • IP65 / IP66K / IP67 enclosure ratings for moisture and dust protection
  • Flame retardant per UL 1581 VW1 / CSA FT1
• Flexible Installation
  • Bending Radius:
    • Flexible Use: >10× cable diameter
    • Stationary: >5× cable diameter
  • Operating Temperature:
    • Flexible: –5 °C to +80 °C
    • Stationary: –30 °C to +80 °C
    • Head: –25 °C to +85 °C
• Compliance & Approvals
  • CE & UL certified
  • UL File No: E335179
  • Overvoltage Category: III
  • Contamination Rating: 3

📦 Applications:

• Industrial machinery and automation
• Sensor-actuator interfaces
• OEM equipment installations
• Manufacturing lines and cleanroom environments

Upgrade your connectivity with the SICK 10m Sensor Cable (4-Way, M12, Flying Leads)—your go-to solution for robust signal transmission, chemical resistance, and hassle-free integration in modern industrial systems.
