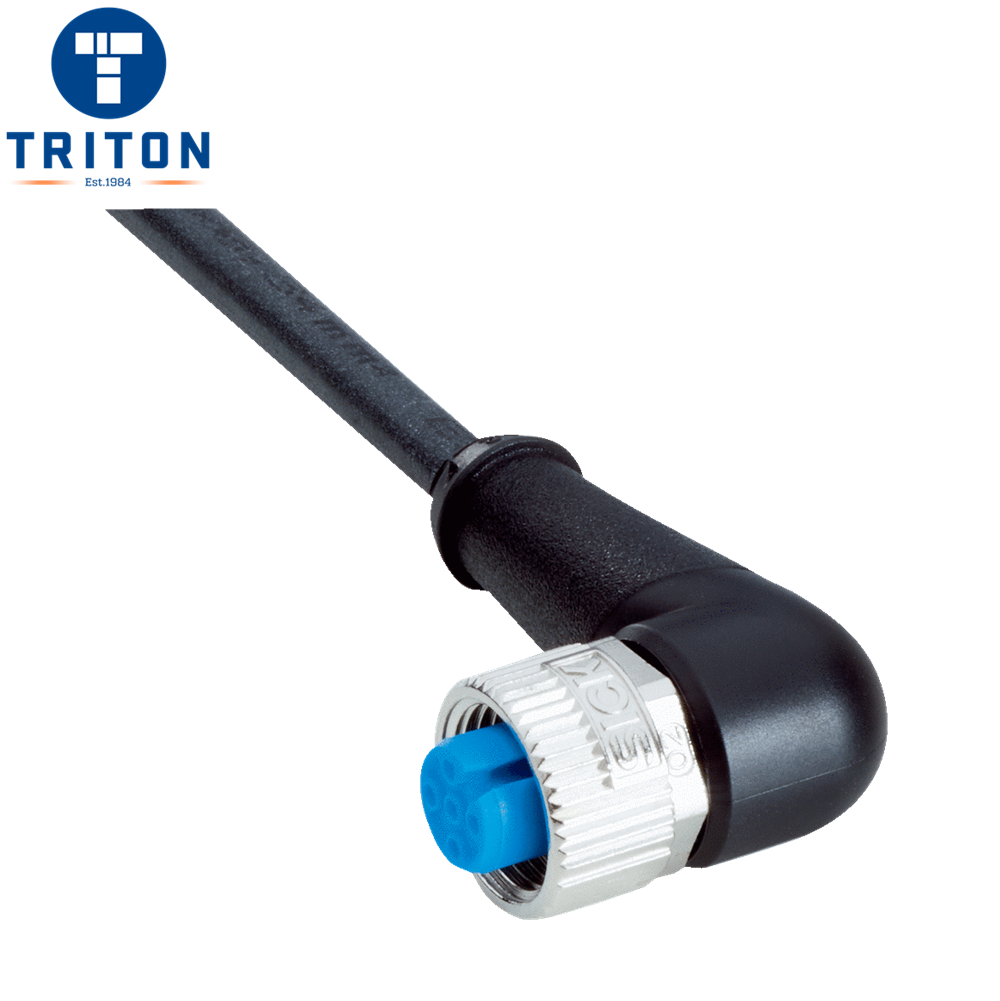

SICK 10m Sensor Cable – 4-Way, Right Angle M12 (A-Coded) with Flying Leads

Flexible, Rugged Connectivity for High-Movement Industrial Applications

Ensure optimal performance and long-lasting reliability in motion-heavy environments with the SICK 10m Right Angle Sensor Cable, engineered for robotic systems, drag chain operations, and oil-prone zones. Designed with durability and signal integrity in mind, this unshielded cable delivers dependable connectivity in compact, dynamic installations.

🔧 Key Features & Benefits:

• Compact Right-Angle Connector Design
  • Head A: M12 female connector, 4-pin, angled, A-coded
  • Head B: Flying leads for flexible terminations
  • Screw-lock mechanism provides secure, vibration-resistant connection
• High-Flex PUR Jacket for Motion-Rich Applications
  • Cable Length: 10 metres
  • Outer jacket: Halogen-free PUR for excellent abrasion, oil, and chemical resistance
  • Cable Diameter: 4.5 mm for slim and flexible routing
  • Ideal for robotics, drag chain operation, and oily environments
• Designed for High-Durability Movement
  • Bending Radius:
    • Flexible use: >10× cable diameter
    • Stationary: >5× cable diameter
    • Drag chain: >10× cable diameter
  • Bending Cycles: 10,000,000
  • Torsion Force: 180° per meter, 2,000,000 torsion cycles
  • Supports traversing speeds up to 3 m/s and acceleration ≤10 m/s²
• Strong Electrical Performance
  • Voltage Ratings:
    • Cable: 300 V AC
    • Reference: 250 V AC / 250 V DC
  • Current Capacity: 4 A
  • Impulse Voltage: 2.5 kV
  • Test Voltage: 2,500 V AC
  • Insulation Resistance: ≥ 100 MΩ
• Wide Temperature Range & Certifications
  • Operating Temp.:
    • Flexible: –25 °C to +80 °C
    • Stationary: –40 °C to +80 °C
    • Head: –25 °C to +85 °C
  • Enclosure Rating: IP65 / IP66K / IP67
  • Flame Retardant: UL 1581, CSA FT2, IEC 60332-1, -2
  • Certifications: CE, UL (UL File No. E335179)

📦 Applications:

• Robotics and automation arms
• Packaging and pick-and-place machines
• Drag chain installations
• Environments exposed to oils and lubricants
• Sensor-actuator interfaces in motion control systems

Upgrade your connectivity with the SICK 10m Right-Angle M12 Sensor Cable, engineered to withstand high-flex cycles and tough environments. It’s the ideal solution where precision, durability, and flexibility meet.
